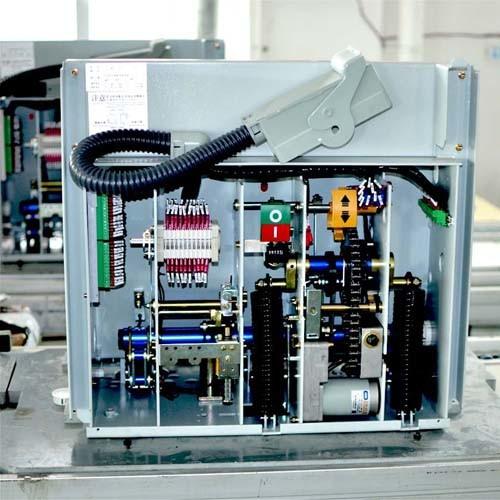

Three Phase AC60Hz Switchgear VCB Circuit Breaker

Brand Name : Knkong

Model Number : VS1-12

Certification : CCC,ISO9001,CE, CB,IEC60898

Place of Origin : China

MOQ : 1

Price : USD 1000-3000

Payment Terms : L/C, T/T

Supply Ability : 100 Unit per month

Delivery Time : 30 days

Type : Vacuum Circuit Breaker

Voltage : 12KV

No. of phase : 3

Frequency : 50/60Hz

OEM/ODM : Inquiry by email

Manufactory : KNKONG

Contact Now

Three Phase AC60Hz Switchgear VCB Circuit Breaker

Product Introduction

VS1-Series embedded pole. vacuum circuit breakers are applicable to 12kV, three-phase AC 50Hz indoor switchgear and can serve as protection and control units for industrial and mining establishment transformer substation equipment. With modular and independent-frame design for their spring operating mechanisms, VS1-Series circuit breakers can operate with KYN28 mid-set and fixed switchgear. These circuit breakers are subject to both fixed installation and assembly with truck as a handcart unit

Normal service condition

Altitude ≤1000m
Ambient temperature Max +40℃
Min -15℃

Ambient humidity:

Maximum average humidity

 24 hours ≤95%
1 month ≤90%
Maximum water vapor pressure 24 hours ≤2.2kpa
1 month ≤1.8kpa

Solar radiation is negligible. Vibration from the outside of switchgears and control-gears is negligible. The ambient air has no obvious pollution of dust smoke, corrosive or combustible gases, steams or smog

VS1 Technical Parameters

No. Item Unit Parameter
1 Rated voltage KV 12/24
2 Rated frequency Hz 50
3

Rated insulation level

 1min power frequency withstand voltage(r.m.s)

KV

42(phase-to-phase,phase-to-earth)

48(across the isolating distance)
Lighting impulse withstand voltage (peak)

75(phase-to-phase,phase-to-earth)

85(across the isolating distance)

4

Rated current

A

 630 630 1250 1600
1250 1250 1600 2000
2000 2500
2500 3150
4000
5 Rated short-circuit breaking current

KA

 20 25 31.5 40
6 Rated short-time withstand current 20 25 31.5 40
7 Rated short-circuit marking current 50 63 80 100
8 Rated peak withstand current 50 63 80 100
9 Rated duration of short-circuit s 4
10 Rated operating sequence O-0.3s-O/C-180s-O/C
O-180s-O/C-180s-O/C(40KA)
11 Breaking times of rated short-circuit current Times 30/20 times(40KA)
12 Mechanical endurance Ops 20000
13 Rated single capacitor bank breaking current

A

 630
14 Rated back-to-back capacitor bank breaking current 400
15 Double-earth fault breaking current 27.4
16 Allowable maximum contact erosion

mm

 3
17 Clearance between open contacts 10±1
18 Over stroke 3.5±0.5
19 Non-simultaneity of 3-phase opening and closing

ms

 ≤2
20 Bounce duration of contact closing ≤2
21 Average breaking speed (instant breaking 6mm)

m/s

 1.1±0.2
22 Average making speed 0.8±0.2
23 Making time

ms

 ≤100
24 Breaking time ≤50

25

Resistance of each phase main circuit

μΩ

 630A ≤50
1250A ≤45
1600A~2000A ≤35
≥2500A ≤25
26 Contact breaking bounce amplitude mm ≤2

27

 Rated operating voltage Rated operating voltage(V)AC/DC

V

 24* 110 220
Scope of normal operation voltage Opening:65%-120% rated voltage, in case the voltage is lower than 30% rated voltage,opening operation is not allowed
28 Rated voltage of energy storage motor V AC110/220,DC110/220
29 Energy storage time s ≤15
